Division 3 – Concrete

03 15 00 – Concrete Accessories

03 15 05 - Concrete Forming Accessories- Keyway, Joint Material, & Nail Stakes

Concrete Hoppers & Accessories

Concrete Hoppers & Accessories

Designer Specifier Contractor
LEED CAD Technical  Guide Spec Installation MSDS
N/A N/A download
EMAIL IT!
N/A N/A Call Office!

Concrete HopperElephant Trunk

Size Part # Weight / roll
6″ x 50′ ET-06 33#
8″ x 50′ ET-08 44#
12″ x 50′ ET-12 65#

Hoppers

Size Discharge Part # Weight

36″ x 36″

Standard

6″-8″-12″ HPR-LD 15#

36″ x 36″

Reinforced

8″-12″ HPR-HD 18#

We supply a Standard, Light Duty, 3-Way Hopper and a Heavy Duty, Steel Reinforced Hopper.

PVC Tremie Pipe

Size Part # Weight

8″ dia. x 4′

TP-08 9#

12″ dia. x 4′

TP-12 11#

They taper from 9″ to 8″ or from 13″ to 12″.

Elephant Trunk Steel Collars

Size Part # Weight

6″

ETC-06 3#

8″

ETC-08 4#

12″

ETC-12 5#

Supplied with chains to quickly attach and detach Elephant Trunks from the Hopper.

Steel Adjustable Band Clamps

Size Part # Weight

Fits 8″-12″ discharge

ETB 1#

Chamfer & Radius Former

Chamfer & Radius Former

Designer Specifier Contractor
LEED CAD Technical  Guide Spec Installation MSDS
download
EMAIL IT!
N/A download
EMAIL IT!
N/A N/A download
EMAIL IT!

Those beautiful lines on concrete buildings aren’t by accident. Chamfer and radius form clean, smooth finished edges on the outside of columns, piers, beams or walls. They provide pleasing lines as well as safer corners for pedestrian traffic.

Chamfer Former Chamfer Former w/Leg Radius Former w/Leg
Chamfer Former CS-500 CL-500 Chamfer Former w/Leg RL-500 Radius Former w/Leg
CS-750 Chamfer Former CL-750 Chamfer Former w/Leg RL-750 Radius Former w/Leg
CS-1000 Chamfer Formers CL-1000 Chamfer Former w/Leg RL-1000 Radius Former w/Leg
CS-1500 Chamfer Formers CL-1500 Chamfer Former w/Leg RL-1500 Radius Former w/Leg
CS-2000 Chamfer Formers CL-2000 Chamfer Former w/Leg RL-2000 Radius Former w/Leg

Drip Strip

Drip Strip

Designer Specifier Contractor
LEED CAD Technical  Guide Spec Installation MSDS
download
EMAIL IT!
N/A download
EMAIL IT!
N/A N/A download
EMAIL IT!

Simple, elegant and functional. The simple design defeats the tenacity and strength of complex surface tension. Breaking the surface tension of water as it seeps off the exposed surface of overhead walkways. Forces the water to drip clear of the walkways below, and prevents staining by keeping water off walls.

DS-500 & DS-750

The Drip Strip is nailed to the form. Then it is easily removed from the concrete to be reused in your next application.

Drip Strip Typical Installation

Expansion Board Cap

Expansion Board Cap

Designer Specifier Contractor
LEED CAD Technical  Guide Spec Installation MSDS
download
EMAIL IT!
N/A download
EMAIL IT!
N/A N/A download
EMAIL IT!

Expansion Board Caps provide clean, sharp lines for sealants. They eliminate the difficulty of removing wooden formers.

Expansion Board Caps

Cat # A B C
1018 3/8″ 3/8″ 5/16″
1019 1/2″ 3/8″ 5/16″
1020 1/2″ 1/2″ 7/16″
1021 3/4″ 1/2″ 5/8″
1022 1″ 1/2″ 7/8″

Zip Joint

Zip Joint

Designer Specifier Contractor
LEED CAD Technical  Guide Spec Installation MSDS
download
EMAIL IT!
N/A download
EMAIL IT!
N/A N/A download
EMAIL IT!

Zip Joints are easily installed joint formers designed to provide positive control of transverse construction or expansion joints. The two-part assembly is designed to permit removal of the top portion after the concrete has hardened, thereby creating a clean, neatly defined void for application of caulk or sealant when specified.

Zip Joints

Cat # A B
1010 1″ 1″
1011 1″ 1 1/2″
1012 1″ 2″

PRO-SLOT & Dovetail Anchors

PRO-SLOTTM & Dovetail Anchors

Designer Specifier Contractor
LEED CAD Technical  Guide Spec Installation MSDS
download
EMAIL IT!
N/A download
EMAIL IT!
N/A Refer to Spec Sheet PRO-SLOTTM
download
EMAIL IT!Dovetail Anchors
download
EMAIL IT!

PRO-SLOT™ Anchor Slot is a stay-in-place concrete form used in forming a channel into the face of any cast in place wall or column. By installing Dovetail Anchors into the PRO-SLOT™, you can then anchor brick, block or stone to the concrete surface.

Pro-Slot Anchor Slot and Dovetail Anchors

Materials

BoMetals galvanized PRO-SLOT™ Anchor Slot is manufactured of G60 hot dipped mill galvanized steel in 26/28, 24, 22, 20 and 18 gage. PRO-SLOT™ is offered standard in 10′ lengths with custom lengths available on a special order basis. BoMetals PRO-SLOT™ is standard with a polystyrene foam filler to keep the channel clear of concrete and resist closure due to hydraulic pressure. It is also available without a polystyrene foam. PRO-SLOT™ incorporates continuous nail grooves along the back edge of the profile to help in nailing the slot to the forms.

Dovetail Anchors are manufactured in 16 gauge hot dipped, galvanized steel and are furnished in 3 1/2″, 5 1/2″ and 7 1/2″ lengths with a 1″ overall width.

Advantages

      • PRO-SLOTTM Anchor Slot and Dovetail Anchors provide a permanent, fast, flexible and cost effective method of anchoring brick, stone and block to cast-in-place concrete walls and columns.
      • PRO-SLOTTM provides an excellent anchoring system for both cast-in-place and precast concrete.
      • With a heavy, galvanized coating to prevent corrosion, Dovetail Anchors have deep corrugations to increase pull out strength.

Installation Instructions

      • Nail BoMetals PRO-SLOTTM anchor slot to the inside of the form wall prior to erection. Install vertically spacing the channels 16″, 18″, or 24″ on center. Use the nail grooves to speed up installation and space nails of 12″ center.
      • Dovetail Anchors should be spaced as indicated on drawings or called for in specifications or as recommended by local building codes. Typically anchors are spaced 12″ to 16″ vertically.

PRO-SLOTTM Anchor Slot – Standard 10′ Lengths

COLOR CODE DESCRIPTION FEET / SKID WEIGHT / SKID

DAS-18

ORANGE

18ga Anchor Slot

STANDARD 10′ long

6,000’ 2,933

DAS-20

YELLOW

20ga Anchor Slot

STANDARD 10′ long

6,000′ 2,247

DAS-22

GREEN

22ga Anchor Slot

STANDARD 10′ long

6,000′ 1,873

DAS-24

BLUE

24ga Anchor Slot

STANDARD 10′ long

6,000′ 1,508

DAS-26

RED

26ga Anchor Slot

STANDARD 10′ long

6,000′ 1,068

Pro-Slot™ Anchor Slot – custom lengths available upon request

Dovetail Anchors

CODE DESCRIPTION PACKAGING WEIGHT / PKG
DTA-35 3-1/2″ Dovetail Anchor

500ea / box

24,000ea / skid

40

1,920

DTA-55 5-1/2″ Dovetail Anchor

500ea / box

24,000ea / skid

60

2,880

DTA-75 7-1/2″ Dovetail Anchor 300ea / box 14,400ea / skid

48

2,304

QuicKey

QuicKeyTM

Designer Specifier Contractor
LEED CAD Technical  Guide Spec Installation MSDS
download
EMAIL IT!
N/A download
EMAIL IT!
N/A download
EMAIL IT!
QuicKeyTM
download
EMAIL IT!Keyway Cap
download
EMAIL IT!

QuicKey Stakes
download
EMAIL IT!

Click Here to watch QuickeyTM Installation Video

QuicKey™ Dimensions

Cat # Slab A B C Knockout
QK35 4″ 3 1/8″ 2″ 3/4″ 7/8″x1 3/8″
QK45 5″ 4 1/8″ 2 1/2″ 3/4″ 7/8″x1 3/8″
QK55 6″ 5 1/8″ 3″ 3/4″ 1 1/4″x1 1/2″
QK75 8″ 7 1/8″ 4″ 1″ 1 1/4″x1 1/2″
QK95 10″-12″ 9 1/8″ 5″ 1″ 1 1/4″x1 1/2″











QuicKey™

Advantages of QuicKey™

      • QuicKey™ [Patent No. 6502359] is the only galvanized joint system that features knockouts for square dowels, which provide better load transfer over round dowels and also reduce edge curl on the slab.
      • Knockout sizes meet both ACI and PCA recommendations for the design of tongue and groove key joint.
      • LOCKING-TAB™ stakes provide a positive interlock between stake and key joint that eliminates floating or rising from the stake, minimizing high spots. The stake profile features a non-twist design which allows the stake to be driven at a straight angle.
      • Saves on installation time, stake quickly interlocks at any point with key joint, reducing time to place stakes precisely.
      • Stiffening ribs are designed for increased rigidity while installing.
      • QuicKey™ removable cap yields straight void ready for sealing.
      • Non-removable cap seals the joint because it stays in place.

QuicKey™ Accessories

QuicKey™ Splices

QuicKey™ Cat #2000

QuicKey™ Cat #2010

PRO-KEY

PRO-KEYTM

Designer Specifier Contractor
LEED CAD Technical  Guide Spec Installation MSDS
download
EMAIL IT!
N/A download
EMAIL IT!
N/A download
EMAIL IT!
Pro-KeyTM
download
EMAIL IT!Keyway Cap
download
EMAIL IT!

Pro-Key Stakes
download
EMAIL IT!

Click Here to watch PRO-KEYTM Installation Guide Video

PRO-KEY™

Cat # Slab A B C Knockout
3500 4″ 3 1/8″ 2″ 3/4″ 7/8″
4500 5″ 4 1/8″ 2 1/2″ 3/4″ 7/8″
5500 6″ 5 1/8″ 3″ 3/4″ 7/8″
7500 8″ 7 1/8″ 4″ 3/4″ 1 1/4″
9500 10″-12″ 9 1/8″ 5″ 3/4″ 1 1/4″

PRO-KEY™ Specs

Advantages of PRO-KEY™

      • Positive stake-to-key lock of PRO-KEY™ [Patent No. 5380122] prevents costly delays associated with resetting key joint when floating concrete. Stakes interlock with slots to prevent the key from rising off the stakes.
      • Location of the key is 1/2 depth of slab as specified by ACI & PCA.
      • LOCK SLOT™ stakes double as a butt splice.
      • Radius formed key eliminates the sharp angles that produce a spalling tendency.
      • ULTRA FINE profile at top edge eliminates surface voids, reduces spalling and produces architecturally pleasing joint lines in the finished slab.
      • Tongue and groove design provide excellent load transfer characteristics for heavy wheeled traffic and prevents uneven settling associated with aggregate interlock.
      • Eliminates costly form stripping and saw cutting. Replaces the slow and costly method of checker-board placement of concrete.

PRO-KEY™ Accessories

PRO-KEY™ removable cap yields straight void ready for sealing

Highway Center Strip Keyway

Highway Center Strip Keyway

Designer Specifier Contractor
LEED CAD Technical  Guide Spec Installation MSDS
download
EMAIL IT!
N/A download
EMAIL IT!
N/A N/A download
EMAIL IT!

Highway Center Strip Drawing

Highway Center Strip is manufactured of 20 gauge, hot dipped, galvanized steel by BoMetals, Inc., in Carrollton, GA. It is furnished in 10′ lengths for 5″, 6″, 7″, 8″, 9″ and 10″ slabs. Each piece is punched on 6″ centers with dowel rod knockouts and each piece is punched on 12″ centers with slots for the interface of supporting stakes. Computer controlled production assures that dowel knockouts and stake slots never interfere with each other. Center Strip Stakes are manufactured from 16 gauge HRPO steel available in 15″, 18″ and 24″ lengths.

Advantage

      • Channel stakes double as a splice.
      • Radius formed key eliminates the sharp angles that produce a spalling tendency.
      • Tongue and groove design provide excellent load transfer characteristics for heavy wheeled traffic and prevents uneven settling associated with aggregate interlock.





Installation

Highway Center Strip Chart

      • Space joints as indicated on drawings, as called for in specifications or as recommended by either ACI or PCA.
      • With elevation checked by instrument, stretch a line the length of the joint below the finished elevation for stake placements.
      • Place the 10′ sections along the line end to end. The stake slots are 12″ on center and act as a simple template for stake placement.
      • Install intermediate stakes on 2′ center … 5 stakes per 10′ section. Additional stakes shall be used with the remaining slots for support if soil conditions require.
      • With continuous placement, concrete shall be placed to full depth simultaneously on both sides of joint.
      • Finish the concrete flush insuring the concrete fills key without void or honeycomb.

Recess Key & Recess Key with Leg

Recess Key & Recess Key with Leg

Designer Specifier Contractor
LEED CAD Technical  Guide Spec Installation MSDS
download
EMAIL IT!
N/A download
EMAIL IT!
N/A N/A download
EMAIL IT!

Recess Key Product LineBoMetals RECESS KEY Product Line is used to make a key in the concrete to provide load transfer across the concrete joint.

BoMetals is proud to announce that we have 3 different types of Recess Key. The main differences between the designs is dowel spacing and hole vs knockout. All the different designs will have the same style profile as you see in Figure A.





Universal Key (RK) & Universal Key with Leg (RKL)

This design can use any 6″ increment on center spacing whether you butt up the ends or overlap the first dowel knockouts.

Universal Key & Universal Key with Leg

MO-Key (RKM) & MO-Key with Leg (RKML)

This design would be used to butt the end together to maintain a 30″ on center spacing throughout the joint. Conforming to Missouri Configurations.

MO-Key & MO-Key with LegIA-Key (RKI) & IA-Key with Leg (RKIL)

This design would be overlapped at the ends to maintain a 30″ on center spacing throughout the joint. Conforming to Iowa Configurations.

IA-Key & IA-Key with Leg

Plastic Nail-On Keyway

Plastic Nail-On Keyway

Designer Specifier Contractor
LEED CAD Technical  Guide Spec Installation MSDS
download
EMAIL IT!
N/A download
EMAIL IT!
N/A N/A download
EMAIL IT!
      • Plastic Nail-On Keyway is nailed to a form prior to pouring
      • Installed in tilt-up work, industrial floors, curbs or wherever specified
      • Simple to use, lightweight and reusable
      • BoMetals quality that you’ve come to recognize
      • 10-foot lengths, 400 feet per box



Plastic Nail-On Keyway

Metal Nail-On Keyway

Metal Nail-On Keyway

Designer Specifier Contractor
LEED CAD Technical  Guide Spec Installation MSDS
download
EMAIL IT!
N/A download
EMAIL IT!
N/A N/A download
EMAIL IT!
      • Folded over to eliminate sharp edges
      • A 1:4 slope that meets both ACI & PCI recommendations
      • Made of 30 gauge high quality hot dipped mill galvanized steel
      • All knockouts are on 6″ center and are 9/16″
      • 5000’/skid
      • BoMetals quality that you’ve come to recognize



Metal Nail-On

NO-Key

NO-KeyTM

Designer Specifier Contractor
LEED CAD Technical  Guide Spec Installation MSDS
download
EMAIL IT!
N/A download
EMAIL IT!
N/A N/A download
EMAIL IT!
      • NO-Key Recess KeyManufactured from 24 gauge Steel
      • Used with 13 gauge QuicKey™ Stakes
      • Available in all our most popular sizes
      • Rolled Bottom Edge for your Protection
      • Use on smaller jobs when a Keyed Control Joint is not required
      • More reliable than a saw-cut, Easy Installation
      • Most effective when used on slabs up to 6”
      • Removable & Non-Removable Caps available

Non Cross Linked Foam

Non Cross Linked Foam

Designer Specifier Contractor
LEED CAD Technical  Guide Spec Installation MSDS
N/A N/A download
EMAIL IT!
N/A N/A Call Office!

Non-Crossed Linked Foam

Available in Black, Grey or White, and can be used in all standard concrete construction applications.  It is widely used and accepted in residential, commercial and industrial construction.

Features

      • Extruded from high quality polyethylene foam
      • Peel off Strip – Standard on each roll, but can be special ordered without
      • Flexibility – Will not break or crack when used around curves or columns
      • Lightweight – Approximately 10 times lighter than traditional expansion joint products
      • Accepted and used daily by both commercial and residential contractors
      • With near zero water absorption, it will not rot out of the joint over time
      • Easily cut and handled on any job site

Installation

      • Your setup is all the same, no special equipment is required.
      • Simply install Non-Cross Linked Foam with the peel strip either up or down, depending on if the joint will be sealed or not.
      • Install using spray on adhesive, mechanical fastners, or depending on the surface simply smack it with a hammer.
      • Finish the concrete as you normally would
      • If the joint will not be sealed then you’re done, if it will be sealed, utilize the peel top feature to create the sealant cavity.

Cross Linked Foam

Cross Linked Foam

Designer Specifier Contractor
LEED CAD Technical  Guide Spec Installation MSDS
N/A N/A download
EMAIL IT!
N/A N/A Call Office

Cross Linked Foam

Available in Black, Grey or Cream rolls or Grey sheets.  Cross-linked PE Foam can be used in all standard concrete construction applications.  It is widely used and accepted in residential, commercial, industrial and State DOT construction.

Features

      • HT (Chemically) or HTI (Irradiation) Crosslinked Types
      • Extruded as high quality closed cell, cross linked polyethylene foam
      • Peel off Strip – Can be added to certain thicknesses, please inquire
      • Flexibility – Will not break or crack when used around curves or columns
      • Accepted and used daily by both commercial/DOT and residential contractors
      • Can be State DOT approved, Conforms to ASTM D-4819 Type 1, please inquire
      • Available with or without PSA (Pressure Sensitive Adhesive)
      • Easily cut and handled on any jobsite

Reliable

HT or HTI provide all the same reliable characteristics as our standard Non Cross Linked Foam but is compatible with hot applied sealants and exposure to a broader range of solvents.

Backer Rod

Backer Rod

Designer Specifier Contractor
LEED CAD Technical  Guide Spec Installation MSDS
N/A N/A Standard
download
EMAIL IT!Soft
download
EMAIL IT!

Hot
download
EMAIL IT!

Open Celled
download
EMAIL IT!

N/A N/A Call Office!

Standard Backer RodStandard Backer Rod is an ideal non absorbent compressible material inserted into a joint to control sealant depth. It creates a backstop to allow for proper sealant tooling. Available in Soft, Hot, & Open Celled Type Backer Rod.

Uses

      • Backer Rod is commonly used in glazing operations, window and door applications, expansion joints, curtain wall joints, partitions, log construction, pavement joints and repair, precast units and copings and any number of other job applications.

Features

      • Standard Backer Rod is an extruded round, closed cell, low density polyethylene foam material with a skin-like outer texture. It is highly flexible and compressible for easy installation. (Do Not puncture, Stretch or Overly Compress)

Neoprene Sponge Rubber

Neoprene Sponge Rubber

Designer Specifier Contractor
LEED CAD Technical  Guide Spec Installation MSDS
N/A N/A download
EMAIL IT!
N/A N/A Call Office!

Neoprene Rubber (Sponge)

Neoprene is available in roll or sheet form and in Multiple Densities / Grades / Types to meet a wide range of specifications.  Please inquire about your specific needs.

Features

      • Neoprene helps prevent clogging of expansion joints with mortar and is the accepted material for brick and block expansion joint fillers.
      • Can be precut and shipped direct to your jobsite.
      • Available with or without PSA (Pressure Sensitive Adhesive)
      • Many different grades available.

Self Expanding Cork

Self Expanding Cork

Designer Specifier Contractor
LEED CAD Technical  Guide Spec Installation MSDS
N/A N/A download
EMAIL IT!
N/A N/A Call Office!

Self Expanding Cork Type IIISelf Expanding Cork is produced with clean granulated cork particles securely bound together with a synthetic resin. The product expands upon exposure to moisture and weather to develop an interface pressure seal within the concrete joint.

Features

      • Self Expanding Cork Type III is particularly used for sealing the expansion joint in water structures, water treatment facilities and storage structures among others.
      • Conforms to ASTM D-1752-84 TYPE III
      • Available in full 24″ x 36″ sheets or can be precut and shipped to meet your exact specifications.
      • S.E. Cork requires proper handling and storing conditions

Standard Cork

Standard Cork

Designer Specifier Contractor
LEED CAD Technical  Guide Spec Installation MSDS
N/A N/A download
EMAIL IT!
N/A N/A Call Office!

Standard Cork Type IIStandard Cork is a resin bonded cork filler for building and civil engineering.

Features

      • Standard Cork Type II consists of extremely selected cork granules securely bound together by a synthetic resin of a soluble nature and molded under heat and pressure.
      • Conforms to ASTM D-1752-84 TYPE II
      • Recommended wherever joints in concrete, brick or block work, require sealing and filling.
      • Available in full 36″ x 10′ sheets or can be precut and shipped to meet your exact specifications.

Flexible Rebonded Rubber

Flexible Rebonded Rubber

Designer Specifier Contractor
LEED CAD Technical  Guide Spec Installation MSDS
N/A N/A download
EMAIL IT!
N/A N/A Call Office!

Flexible Rebonded Rubber Joint MaterialFormed from pieces of a high quality rubber, bonded securely with resin.  It is highly reslient and will compress with little extrusion and recover to 90% of its original thickness.

Features

      • Rebonded Rubber is a widely accepted form of expansion joint filler today. It can be used in almost any type of residential or commerical application including Corps of Engineers projects such as dams, levees and water treatment facilities.
      • Conforms to ASTM D-1752 TYPE I, AASHTO M 153-70 TYPE I, HH-F-341-F TYPE II, Class A.
      • Available in sheet sizes of 36″ x 54″ or precut at the factory to your exact specification requirements.

    Nail Stakes

    Nail Stakes

    Designer Specifier Contractor
    LEED CAD Technical  Guide Spec Installation MSDS
    N/A N/A download
    EMAIL IT!
    N/A N/A Call Office!

    Nail StakesBoMetals, Inc supply of nail stakes are primarily used to secure wood or metal forms for concrete placement jobs and in outside concrete forming.

    3/4″ Full Size, High Tensile, Round with Holes

    (NH – no holes also available)

    Code Size pcs / skid wt / skid
    NS-3412 3/4″ X 12″ 1500 2,100
    NS-3418 3/4″ X 18″ 1000 2,100
    NS-3424 3/4″ X 24″ 750 2,175
    NS-3430 3/4″ X 30″ 600 2,100
    NS-3436 3/4″ X 36″ 500 2,150
    NS-3442 3/4″ X 42″ 400 2,000
    NS-3448 3/4″ X 48″ 300 1,710

    7/8″ Full Size, High Tensile, Round with Holes

    (NH – no holes also available)

    Code Size pcs / skid wt / skid
    NS-7812 7/8″ X 12″ 1000 2,000
    NS-7818 7/8″ X 18″ 750 1,950
    NS-7824 7/8″ X 24″ 600 1,980
    NS-7830 7/8″ X 30″ 500 2,000
    NS-7836 7/8″ X 36″ 400 2,000
    NS-7842 7/8″ X 42″ 350 1,995
    NS-7848 7/8″ X 48″ 300 2,010


    03 15 13 - Waterstops- PVC, Chemical Resistant, Strip Applied, & Accessories



    PVC Waterstop

    PVC Waterstops

    Designers Specifiers Contractors
    LEED INFO CAD Details Technical Data Guide Spec Installation Procedures MSDS
    download
    EMAIL IT!
    Dumbbell with Center BulbRibbed Center Bulb

    Split Ribbed

    Tear Web

    International Moving

    Base Seal

    Dumbbell

    Flat Ribbed

    Multi Rib

    Split Dumbbell

    International Non-Moving

    Retro Fit

    Dumbbell with Center BulbRibbed Center Bulb

    Split Ribbed

    Tear Web

    International Moving

    Base Seal

    Dumbbell

    Flat Ribbed

    Multi Rib

    Split Dumbbell

    International Non-Moving

    Retro Fit

    download (2)
    EMAIL IT!
    Dumbbell with Center BulbRibbed Center Bulb

    Split Ribbed

    Tear Web

    International Moving

    Base Seal

    Dumbbell

    Flat Ribbed

    Multi Rib

    Split Dumbbell

    International Non-Moving

    Retro Fit

    download
    EMAIL IT!
    Click Here to watch Waterstop Splicing Video

    waterproofing-1BoMetals PVC Waterstop is a conventional waterstop that can be used in a variety of applications. The main usage is to prevent the passage of liquids in concrete joints in many different projects such as Dams, Tunnels, Water & Wastewater Treatment Plants, and other liquid retaining structures. BoMetals has become one of the American Owned Company leaders in the manufacturing of Waterstop, and we look forward to help you with your current and future projects.

    BoMetals categorizes Waterstops by the type of concrete joints they seal. The characteristics of the joint are used to determine the differing demands on the Waterstops and their expected performance.

    Physical Properties of PVC Waterstops

    Typical Properties ASTM Method Minimum Value
    Water Absorption % D-570  .15
    Tear Resistance psi (kg/cm2) D-624 300 (21.1)
    Specific Gravity (±0.05) D-792 1.38
    Hardness Shore A (±5 10 sec. delay) D-2240 80
    Tensile psi (kg/cm2) D-638 Type IV 2000 (140.61)
    Elongation %  D-638 Type IV 350
    100% Modulus psi (kg/cm2)  D-638 Type IV 725 (50.75)
    Brittle (Tb) °F (ºC)  D-746 -35 (-37) Passed
    Stiffness in Flexure psi (kg/cm2) D-747 600 (112.49)
    Ozone Resistance D-1149 No Failure
    Accelerated Extraction, CRD-572
    Tensile psi (kg/cm2)  D-638 Type IV 1600 (112.49)
    Elongation %  D-638 Type IV 300
    Effect of Alkali, CRD-572
    Weight Change % -0/+0.25
    Change in Hardness Shore A D-2240 5

    TPER Waterstop

    Chemical Resistant Waterstops

    Designers Specifiers Contractors
    LEED INFO CAD Details Technical Data Guide Spec Installation Procedures MSDS
    download
    EMAIL IT!
    Dumbbell with Center BulbRibbed Center Bulb

    Split Ribbed

    Tear Web

    International Moving

    Base Seal

    Dumbbell

    Flat Ribbed

    Multi Rib

    Split Dumbbell

    International Non-Moving

    Retro Fit

    Dumbbell with Center BulbRibbed Center Bulb

    Split Ribbed

    Tear Web

    International Moving

    Base Seal

    Dumbbell

    Flat Ribbed

    Multi Rib

    Split Dumbbell

    International Non-Moving

    Retro Fit

    download (2)
    EMAIL IT!
    Dumbbell with Center BulbRibbed Center Bulb

    Split Ribbed

    Tear Web

    International Moving

    Base Seal

    Dumbbell

    Flat Ribbed

    Multi Rib

    Split Dumbbell

    International Non-Moving

    Retro Fit

    Call Office!
    Click Here to watch Waterstop Splicing Video

    TPER Waterstops from BoMetals

    BoMetals, inc. TPER Waterstops play a critical part in providing a fluid tight diaphragm in secondary and tertiary above and below ground containment facilities. This is accomplished by offering a product for concrete joints that greatly expands its resistance to hot petro-chemicals, solvents, aqueous acids and other chemicals listed as hazardous by the EPA.

    BoMetals, inc. manufactures TPER Waterstop from a specially formulated Thermoplastic Vulicanizate which is fully cross-linked compound. This product will assure an owner of a facility that requires containment, for environmentally sensitive materials, a reliable and easy to install product. BoMetals’ TPER Waterstop is available in a wide variety of profiles up to 12 inches wide.

    Physical Properties of TPER Waterstops

    Typical Properties ASTM Method Nominal Value
    Hardness Shore A (±3) D-2240 90
    Tensile Strength, psi D-412 2300
    Elongation, % D-412 530
    Brittle Point, ºF D-746 -65
    Stress@ 100% Elongation, psi D-638 1000
    Ozone Resistance D-1171

    Passed with no cracking

    at 500 pphm

    B-SEAL Paving Cap Seal

    B-SEAL Paving Cap Seal

    Designer Specifier Contractor
    LEED CAD Technical  Guide Spec Installation MSDS
    download
    EMAIL IT!
    N/A download
    EMAIL IT!
    N/A download
    EMAIL IT!
    download
    EMAIL IT!
    B-SEAL PACKAGE

    B-SealChemical Resistant tag

    Call for Availability at 800-862-4835

    B-SEAL is one of the most advanced paving cap seal system in the industry. It uses specially formulated PVC to provide a durable sealing system for a maintenance free joint.

          • Protects against debris
          • Can be used in the screeding process
          • Same continuous look throughout joint



    B-SEAL Profiles 2



    B-seal Spec
    B-seal Spec

    PVC & TPER Fabrications

    PVC & TPER Fabrications

    Designer Specifier Contractor
    LEED CAD Technical  Guide Spec Installation MSDS
    download
    EMAIL IT!
    N/A N/A N/A download
    EMAIL IT!
    PVC Waterstop
    download
    EMAIL IT!TPER Waterstop
    CALL OFFICE!
    Click Here to watch Custom Fabrications Examples For Waterstops VideoFlat Cross Approval SheetEmail
    Flat Ell Approval SheetEmail
    Flat Tee Approval SheetEmail
    Vertical Cross Approval SheetEmail
    Vertical Ell Approval SheetEmail
    Vertical Tee Approval SheetEmail

    An important factor in the watertightness of any waterstop system is the reliability of splices. With BoMetals custom fittings, you are guaranteed greater strength and efficiency with ease of field installation. The following factory made splices are available in PVC & TPER.

    Custom Splices

    To have BoMetals make your Custom Splices, please download and fill out our approval sheet that corresponds to your needs (because these are custom items and are non-refundable) and send to your Distributor. Give us a call if you need circular, square, and irregular fittings, we are here to help make your job easier!

    Welding Iron

    Welding Iron

    Designer Specifier Contractor
    LEED CAD Technical  Guide Spec Installation MSDS
    N/A N/A download
    EMAIL IT!
    N/A N/A N/A
    Click Here to watch Waterstop Splicing Video

    Welding Iron SI414 BoMetals Splicing Irons are specifically designed for welding PVC & TPER Waterstop as outlined in Corp of Engineer Specification CRD C-572-74. The temperature control can be adjusted from 250º-500º Fahrenheit. BoMetals thermoplastic welding irons are constructed of the highest quality components.

          • Peel & Stick Teflon Cover
          • 100% Factory Tested
          • Heavy Duty Vinyl Grip
          • 8 Foot Grounded Cord
          • Standard 110-120 VAC/8 AMP
          • Adjustable Temperature
          • Individually Boxed

    Welding Iron JP214

    Waterstop Accessories

    Hog Rings

    Designer Specifier Contractor
    LEED CAD Technical  Guide Spec Installation MSDS
    N/A N/A N/A N/A N/A N/A

    Hogrings InstallationSuspending PVC or TPER Waterstop can be a tedious undertaking without help. That is why factory installed Hog rings are used. The factory installed Hog rings allow you to easily attach a Waterstop to your tie wire. BoMetals can install Hog rings in virtually any PVC or TPER profile.

    Hogrings InstallationHog rings can also be installed manually on the job site by using Hog ring pliers. BoMetals offers 100 count boxes, 50lb boxes of Hog rings for field installation and pliers.

    Eyelets

    Designer Specifier Contractor
    LEED CAD Technical  Guide Spec Installation MSDS
    N/A N/A N/A N/A N/A N/A

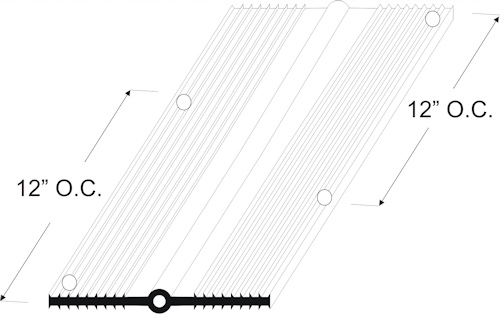

    Suspending TPER or PVC Waterstop can be a tedious undertaking without help. That is why factory installed Eyelets are used. The factory installed Eyelet allows you to easily attach the Waterstop to your tie wire. BoMetals can install Eyelets in virtually any PVC or TPER profile.
    Eyelet Installation

    Synko-Flex Waterstop

    Synko-Flex Waterstop

    Designer Specifier Contractor
    LEED CAD Technical  Guide Spec Installation MSDS
    N/A N/A download
    EMAIL IT!
    N/A N/A download
    EMAIL IT!

    This self-sealing, non-swelling preformed joint sealant provides a lasting, watertight bond on both fresh and cured concrete surfaces. Synko-Flex® Waterstop achieves a watertight seal within cold joints at footings, walls and slabs. Rain and moisture resistant, Synko-Flex® Waterstop is also a simple, long-term solution for sealing pipes, sleeves, and collars embedded or cast into concrete structures.

    Features

          • Eliminates split forming, wiring to rebar, heat welding of splices
          • Unaffected by rain or moisture during installation
          • Offers excellent chemical resistance
          • Bonds to most substrates
          • Unaffected by cyclic wetting and drying
          • Safe for use in potable water structures

    Primers

    Packaging

          • Extruded in a square cross-section between two quick-release protective wrappers
          • Available in 35 (1 in. x 3 ft.) strips per case (SF-53)



    Synko-Flex Detail

    Synko-Flex Fuel Resistant Waterstop

    Synko-Flex Fuel Resistant Waterstop

    Designer Specifier Contractor
    LEED CAD Technical  Guide Spec Installation MSDS
    N/A N/A download
    EMAIL IT!
    N/A N/A download
    EMAIL IT!

    Synko-Flex FR Waterstop SF312Synko-Flex® Waterstop FR provides a water-tight seal around cold joints in concrete structures exposed to hydrocarbon liquids. Designed for ease of use, Synko-Flex® FR Waterstop is a preformed adhesive that may also be used to seal around concrete, steel, PVC or HDPE pipe penetrations through concrete walls or floor slabs.

    Features

          • Eliminates split forming, wiring to rebar, heat welding of splices
          • Unaffected by rain or moisture during installation
          • Offers excellent chemical resistance
          • Bonds to most substrates
          • Unaffected by cyclic wetting and drying

    Primers

    Packaging

          • Available in coils – 6 per carton; 100 lineal feet per carton (SFR-52)

    Synko-Flex

    Hydro-Flex Waterstop

    Hydro-Flex

    Designer Specifier Contractor
    LEED CAD Technical  Guide Spec Installation MSDS
    N/A N/A download
    EMAIL IT!
    N/A N/A download
    EMAIL IT!

    Hydro-Flex Waterstop HF302Henry’s Hydro-Flex® Waterstop is an easy to use, preformed, self-adhesive hydrophilic waterstop that provides a watertight seal in cold joints on concrete structures. Designed to swell into unconsolidated concrete surfaces upon contact with water, Hydro-Flex® Waterstop features an advanced blend of butyl rubber, polypropylene elastomers, hydrophilic fillers and plasticizers. For exterior use only.

    Features

          • Eliminates split forming, wiring to rebar, heat welding of splices
          • Stays flexible in cold weather
          • Offers excellent chemical resistance
          • Bonds to most substrates

    Primers

    Packaging

          • Available in .5 in. x 1.125 in. x 16.67 ft. coils – 6 per carton (HF-52)

    Synko-Flex Solvent Based Primer

    Synko-Flex Solvent Based Primer

    Designer Specifier Contractor
    LEED CAD Technical  Guide Spec Installation MSDS
    N/A N/A download
    EMAIL IT!
    N/A N/A download
    EMAIL IT!

    Synko-Flex Solvent Based Primer SF311Synko-Flex® Solvent Based Primer penetrates concrete pores and seals concrete surfaces to provide an optimal surface for the adhesion and bonding of Synko-Flex®, Hydro-Flex® Waterstops and Ram-Nek®Concrete Joint Sealant Products. Formulated with a solution of select asphalt base in a petroleum solvent, Synko-Flex® Solvent Based Primer is for exterior use only.

    Features

          • Applies easily by brush
          • Readily penetrates concrete pores and surfaces
          • Covers approximately 200 lineal feet per gallon

    Packaging

          • Available in one-gallon (8.5 lb) jugs (SFP-42)



    Synko-Flex

    Synko-Flex Emulsion Primer

    Synko-Flex Emulsion Primer

    Designer Specifier Contractor
    LEED CAD Technical  Guide Spec Installation MSDS
    N/A N/A download
    EMAIL IT!
    N/A N/A download
    EMAIL IT!

    Synko-Flex Emulsion Primer SF300Henry’s Synko-Flex® Emulsion Primer penetrates concrete surfaces to provide an optimal surface for the adhesion and bonding of Synko-Flex® or Hydro-Flex® preformed adhesive waterstops, and Ram-Nek®joint sealants. Formulated with a thin, environmentally safe solution of mineral colloid asphalt emulsion.

    Features

          • Applies easily by brush
          • Readily penetrates concrete pores and surfaces
          • Odorless, eco-friendly and non-flammable when wet
          • May be applied on damp or “green” concrete surfaces

    Packaging

          • Available in one-gallon (8.98 lb) jugs and 55-gallon (205 liter/550 lb) drums  (SFP-E42)

    Synko-Flex

    P-201

    ADEKA ULTRASEAL® P-201

    Designer Specifier Contractor
    LEED CAD Technical  Guide Spec Installation MSDS
    N/A N/A TDS
    download
    EMAIL IT!Concrete Coverage Chart
    download
    EMAIL IT!

    Curing Time and Bead Size
    download
    EMAIL IT!

    Durability Data
    download
    EMAIL IT!

    Submittal Package
    download
    EMAIL IT!

    N/A N/A Call Office!
    Click Here to watch P-201 Installation Video

    ADEKA ULTRASEAL® P-201 is a water swelling, single component, elastic sealant which expands up to 2 times by volume (100%). It is used in variety of places such as cold/construction joints, expanded metal forms, piping penetrations, etc. P-201 is used as a waterstop in new construction and in repair applications which can be placed on damp or uneven surfaces and functions in a wide range of temperatures and ground water conditions.

    Features

          • Good chemical resistance and durability pH range 3~11
          • Easy to use ONE part hydrophilic urethane
          • Easy to apply
          • Temperature / humidity cure
          • Excellent adhesive strength
          • Excellent Durability

    Packaging

          • Available in 24 each ~10.8oz cartridges / case.

    MC-2010MN

    ADEKA ULTRASEAL® MC-2010MN

    Designer Specifier Contractor
    LEED CAD Technical  Guide Spec Installation MSDS
    N/A N/A TDS
    download
    EMAIL IT!Concrete Coverage
    download
    EMAIL IT!

    Concrete Coverage Calculations
    download
    EMAIL IT!

    Expansion Pressure Graph
    download
    EMAIL IT!

    Durability Data
    download
    EMAIL IT!

    download
    EMAIL IT!
    download
    EMAIL IT!
    Call Office!
    Click Here to watch MC-2010MN Installation Video
    MC-2010MN Submittal Package

    ADEKA ULTRASEAL® MC-2010MN is a 20mm x 10mm (approx. 0.8″ x 0.4″) chemical modified natural rubber (non-vulcanized) product. The manufacturing process chemically bonds a hydrophilic agent to the rubber. This permits the seal to undergo controlled expansion when exposed to moisture. This expansion capability provides a “double locking” waterstop. Expansion occurs in three dimension – width, height and length. MC-2010-MN has a unquie stainless steel wire mesh embedded within the material. The wire mesh eliminates unnecessary expansion in the length and width dimensions. When fastend to concrete, the wire mesh prevents “winding” action and directs the expansion.

    Features

          • Permanent Waterstopping Function
          • Easier and More Economical to Install
          • NSF 61 Certified

    Hydrophilic Sealant

    Packaging

          • Available in 1 roll of 82 feet / case.

    KBA-1510FP

    ADEKA ULTRASEAL® KBA-1510FP

    Designer Specifier Contractor
    LEED CAD Technical  Guide Spec Installation MSDS
    N/A N/A download
    EMAIL IT!
    N/A N/A Call Office!
    KBA-1510FP Submittal Package

    ADEKA ULTRASEAL® KBA-1510FP is a 15mm x 10mm (approx. 0.6″ x 0.4″) chemical modified natural rubber (vulcanized) product. The manufacturing process chemically bonds a hydrophilic agent to the rubber. This permits the seal to undergo controlled expansion when exposed to moisture. This expansion capability provides a “double locking” waterstop. KBA-1510FP has excellent durability and resistance to chemical contaminants. It can perform in a wide range of solutions such as seawater or cement water. The material does not contain any toxic substance or heavy metals and is environmental safe.

    Features

          • Minimum of 1″ of good quality concrete coverage
          • Easier and More Economical to Install
          • Hydrostatic Head of 25 feet or less

    Hydrophilic Sealant

    Packaging

          • Available in 1 roll of 82 feet / case.

    MC-2005T

    ADEKA ULTRASEAL® MC-2005T

    Designer Specifier Contractor
    LEED CAD Technical  Guide Spec Installation MSDS
    N/A N/A Cold Joint
    download
    EMAIL IT!Piping Penetration
    download
    EMAIL IT!

    General Piping Penetration Details
    download
    EMAIL IT!

    N/A N/A Call Office!
    MC-2005T Submittal Package

    ADEKA ULTRASEAL® MC-2005T is a 20mm x 5mm (approx. 0.8″ x 0.2″) chemical modified natural rubber (non-vulcanized) product. The manufacturing process chemically bonds a hydrophilic agent to the rubber. This permits the seal to undergo controlled expansion when exposed to moisture. This expansion capability provides a “double locking” waterstop. Expansion occurs in three dimension – width, height and length. MC-2005T requires a minimum of 4~5 inches of concrete coverage.

    Features

          • Permanent Waterstopping Function
          • Easier and More Economical to Install
          • Adhesive on back to aid with installation

    Hydrophilic Sealant

    Packaging

          • Available in 10 rolls of 33 feet / case.

    KM-String

    ADEKA ULTRASEAL® KM-String

    Designer Specifier Contractor
    LEED CAD Technical  Guide Spec Installation MSDS
    N/A N/A download
    EMAIL IT!
    N/A N/A Call Office!

    ADEKA ULTRASEAL® KM-String is a chemical modified natural rubber (vulcanized) product. The manufacturing process chemically bonds a hydrophilic agent to the rubber. This permits the seal to undergo controlled expansion when exposed to moisture. This expansion capability provides a “double locking” waterstop. KBA-1510FP has excellent durability and resistance to chemical contaminants. It can perform in a wide range of solutions such as seawater or cement water. The material does not contain any toxic substance or heavy metals and is environmental safe. It will expand approximately 3 times by volume.

    Features

          • Waterstop Repair in sheet pile interlocks and other applications

    Packaging

          • KM4mm (5 rolls of 33 feet / case)
          • KM6mm (5 rolls of 33 feet / case)
          • Also available 8mm-24mm by special order.

    KM-3030M

    ADEKA ULTRASEAL® KM-3030M

    Designer Specifier Contractor
    LEED CAD Technical  Guide Spec Installation MSDS
    N/A N/A KM-3030M
    download
    EMAIL IT!KM-3030M Construction Joint Details
    download
    EMAIL IT!

    Call for TDS on KM-4040M!

    N/A N/A Call Office!

    ADEKA ULTRASEAL® KM-3030M is a 30mm x 30mm (approx. 1.18″ x 1.18″) chemical modified natural rubber (vulcanized) product. The manufacturing process chemically bonds a hydrophilic agent to the rubber. This permits the seal to undergo controlled expansion when exposed to moisture. This expansion capability provides a “double locking” waterstop. KM-3030M has excellent durability and resistance to chemical contaminants. It can perform in a wide range of solutions such as seawater or cement water. The material does not contain any toxic substance or heavy metals and is environmental safe.

    Features

          • Easier and More Economical to Install

    Hydrophilic Sealant

    Packaging

          • Available in 1 roll of 33 feet / case.



    A-30

    ADEKA ULTRASEAL® A-30

    Designer Specifier Contractor
    LEED CAD Technical  Guide Spec Installation MSDS
    N/A N/A downloadEMAIL IT! N/A downloadEMAIL IT! Call Office!

    ADEKA ULTRASEAL® A-30 is a  two component liquid hydrophilic (water swelling) waterstop. It is used as a waterstop in steel, plastic or composite sheet pile interlocks which ideally suited for preventing water migration due to its ability to expand up to 3 times by volume when exposed to water.

    Features

          • Good chemical resistance and durability pH range 3~11
          • Easy to use two part urethane. Packaged in ratio amounts
          • Chemical cure- will cure at low temperatures
          • Excellent adhesive strength- difficult to remove during driving
          • Withstand 160 foot hydrostatic head (50 meters)
          • May be used with all types of sheet piles

    Packaging

          • Available in 3.77gal of A-30 Resin and 0.97 quarts of A-30 Hardener which equal 4 gallons of product.

    03 21 00 – Reinforcment Bars

    03 21 05 - Rebar Accessories- Chairs & Stakes

    2 & 3 Bar Foundation Chair

    2 & 3 Bar Foundation Chair

    Designer Specifier Contractor
    LEED CAD Technical  Guide Spec Installation MSDS
    N/A N/A download
    EMAIL IT!
    N/A N/A Call Office!

    Foundation Chairs are widely used to support rebar when pouring footers. They are simple to use, inexpensive, and convenient. Offered in a 2-Bar and a 3-Bar design. Manufactured from 12 gauge wire.

    Foundation Chairs

    2-BAR   40 boxes / skid                           3-BAR   32 boxes / skid

    P-Stakes

    P-Stakes

    Designer Specifier Contractor
    LEED CAD Technical  Guide Spec Installation MSDS
    N/A N/A download
    EMAIL IT!
    N/A N/A Call Office!

    P-Stakes



            Call 800-862-4835 for the P-Stake that best suits you job!!!!!!!!!

          • Dowel and tie bar support
          • Made in USA
          • Standard with 0.306″ Wire for stem
          • Standard 1″ Stem above Loop
          • With/without crossbar
          • With/without bias cut
          • 0.1875″ Wire for Crossbar and Loop
          • Loop = Bar Size + 0.125″
          • 100 ea per box

    Wire Bar Stakes

    Wire Bar Stakes

    Designer Specifier Contractor
    LEED CAD Technical  Guide Spec Installation MSDS
    N/A N/A download
    EMAIL IT!
    N/A N/A Call Office!
          • Made from 3/16″ Nominal Wire
          • 100 ea per box
    Wire Bar Stakes WBS-22 Wire Bar Stake WBS-2

    Rebar Stakes

    Rebar Stakes

    Designer Specifier Contractor
    LEED CAD Technical  Guide Spec Installation MSDS
    download
    EMAIL IT!
    N/A download
    EMAIL IT!
    N/A N/A download
    EMAIL IT!

    Rebar Stake Front

    BoMetals Rebar Stake is used to hold one end of a tie-bar or dowel bar while the dowel bar is going through a dowel hole in the keyway or timber form work.

    • Rebar Stake made from 18 gauge, hot dipped, mill galvanized steel
    • 12 Length
    • 7/8″ Hole Size
    • 100/box

    Rebar Stake Top



    Grade Stakes

    Grade Stakes

    Designer Specifier Contractor
    LEED CAD Technical  Guide Spec Installation MSDS
    download
    EMAIL IT!
    N/A download
    EMAIL IT!
    N/A N/A download
    EMAIL IT!
            Grade Stakes

          • Pre-drilled holes for tie wire
          • Termite proof
          • Each stake has a pointed, sharp tip for easy installation
          • Will not split like wood
          • Can be used as rebar support
          • Available in 12″, 18″, 24″, or 30″ lengths
          • 100 pieces per box
          • Made from 16 gauge HRPO steel







    Channel Stakes

    Channel Stakes

    Designer Specifier Contractor
    LEED CAD Technical  Guide Spec Installation MSDS
    download
    EMAIL IT!
    N/A download
    EMAIL IT!
    N/A N/A download
    EMAIL IT!
          • Grade StakesPre-drilled holes for tie wire
          • Use with Highway Center Strip Keyway
          • Can be used as rebar support
          • Will not split like wood
          • Available in 15″ & 18″ lengths
          • 100 pieces per box
          • Made from 16 gauge HRPO steel







    03 21 10 - Uncoated Reinforcing Steel- Dowel Systems & Smooth Round Dowels

    Round Dowel System

    UDS Systems

    Designer Specifier Contractor
    LEED CAD Technical  Guide Spec Installation MSDS
    N/A N/A download
    EMAIL IT!
    N/A N/A Call Office!

    Available sizes will be 5/8″, 3/4″, & 1″ diameter with 9″ long sleeves.

    Twist in Flange

    UDS Twist in Flange

    Features and Benefits

          • Full length sleeve ensures no concrete to dowel bonding
          • Injection moulded for accurate tolerances and maximum straightness
          • Stiffening ribs to minimize distortion
          • Simply twist & turn into knock-outs in BoMetals QuicKey™ System
          • Can be used as a face fixing sleeve on conventional timber or steel formwork
          • Can be used as part of a dowel cradle or basket
          • Length can be trimmed to suit any dowel length
          • Support leg/stand allows extra support to ensure correct alignment is maintained during pour
          • All UDS’s have legs/stands that can be easily snapped off for height adjustment.



    UDS System representative view with stand/leg inserted

    UDS (Universal Dowel Sleeve) System

    Flat Plate Dowel System

    Dominator Flat Plate Dowel System

    Designer Specifier Contractor
    LEED CAD Technical  Guide Spec Installation MSDS
    N/A N/A download
    EMAIL IT!
    N/A N/A Call Office!

    Most Advanced Design in Doweling Systems

    Dominator Flat Plate Dowel System

    Dominator Plate

          • A consistent cross-sectional area provides increased capacity at wider joints openings
          • Instead of a wider plate, a thicker plate allows a more economical use of steel to provide increased bending capacity
          • Bearing Stress between steel and concrete is reduced when compared to conventional dowels
          • Engineered for optimal performance

    Dominator Sleeve

          • Durable Polystyrene
          • Tapered Sleeve for increased lateral movement to prohibit lateral restraint
          • Ribs on the sleeve provide anchorage in concrete and increase the rigidity of the sleeve
          • Internal Supports prevent the sleeve compressing during installation allowing easy and accurate insertion of the steel plate.

    Installation

    • Eliminates drilling forms and greasing dowels
    • Don’t have to worry about misaligned dowels resulting in slab lockup which can cause cracking
    • Reduce labor cost when compared to conventional dowels
    • Preset nails for quick and easy installation
    • Improved job site access with shorter dowels and bright yellow sleeves
    • Less Hazards = Less On-Site Accidents = Faster Installation Time = Less Labor Cost

    Dominator Plate Doweling System

    Based on spacing recommendations in conformance with ACI 360R-10
    Slab Depth Dominator Flat Plate Dowel Dimensions Spacing
    5″-6″

    3/8″ x 3″ x 6″

    (10mm x 75mm x 150mm)

    18″
    7″-8″

    3/8″ x 3″ x 6″

    (10mm x 75mm x 150mm)

    18″
    9″-11″

    3/8″ x 3″ x 6″

    10mm x 75mm x 150mm

    18″
       Note: Information above is based on a maximum joint opening of 0.20″

    For any design and spacing review, product information, consult a BoMetals Engineer or Technical Sales Representative.

    Dominator Plate Dowel vs Typical Plate Dowel

    Smooth Rod Dowels

    Smooth Rod Dowels

    Designer Specifier Contractor
    LEED CAD Technical  Guide Spec Installation MSDS
    N/A N/A N/A N/A N/A N/A

    BoMetals Smooth Rod Dowels are manufactured for any diameter and length for your job needs. All Smooth Round Dowels are sawn to prevent unwanted restriction after concrete pours! Please call us at 800-862-4835 for availability!

    UDS (Universal Dowel Sleeve) System

    03 40 00 – Precast Concrete

    03 40 00 - Precast Concrete- Precast Solid Sealants

    Ram-Nek RN101

    Ram-Nek Preformed Flexible Plastic Gasket Strips RN101

    Designer Specifier Contractor
    LEED CAD Technical  Guide Spec Installation MSDS
    N/A N/A download
    EMAIL IT!
    N/A N/A download
    EMAIL IT!

    Ram-Nek Preformed Flexible Plastic Gasket Strips RN101RAM-NEK® Preformed Flexible Plastic Gasket (Strips) will seal everything from storm sewer pipes, box culverts and manholes to septic tanks, utility vaults and wet wells. Meets Federal Specification SS-S-210 (210-A), AASHTO M-198 75 1 and ASTM C990-09.

    Features

          • Easy-to-use
          • Seals a wide range of precast products
          • Suitable for vertical and horizontal applications

    Primers

    Packaging

          • 50 (.75 in. x 2.5 ft.) strips per case (RN-99)
          • 35 (1 in. x 2.5 ft.) strips per case (RN-54)
          • 28 (1.25 in. x 3.5 ft.) strips per case (RN-90)
          • 20 (1.5 in. x 3.5 ft.) strips per case (RN-89)
          • 13 (1.75 in. x 3.5 ft.) strips per case (RN-88)
          • 10 (2 in. x 3.5 ft.) strips per case (RN-86)

    RAM-NEK

    Ram-Nek RN103

    Ram-Nek Preformed Flexible Plastic Gasket Strips RN103

    Designer Specifier Contractor
    LEED CAD Technical  Guide Spec Installation MSDS
    N/A N/A download
    EMAIL IT!
    N/A N/A download
    EMAIL IT!

    NEK® Preformed Flexible Plastic Gasket (Coils) will seal everything from storm sewer pipes, box culverts and manholes to septic tanks, utility vaults and wet wells. Meets Federal Specification SS-S-210 (210-A), AASHTO M-198 75 1 and ASTM C990-09.

    Features

          • Seals a wide range of precast products
          • Suitable for vertical and horizontal applications
          • Extruded into convenient coil lengths

    Primers

    Packaging

          • 9 (.75 in. x 14.5 ft.) coils per case (RN-85)
          • 8 (1 in. x 14.5 ft.) coils per case (RN-84)
          • 5 (1.25 in. x 14.5 ft.) coils per case (RN-82)
          • 5 (1.5 in. x 10.5 ft.) coils per case (RN-81)

    RAM-NEK

    Ram-Nek RN109

    Ram-Nek Preformed Fuel Resistant RN109

    Designer Specifier Contractor
    LEED CAD Technical  Guide Spec Installation MSDS
    N/A N/A download
    EMAIL IT!
    N/A N/A download
    EMAIL IT!

    RAM-NEK FR RN109RAM-NEK® FR is ideal for sealing joints in utility vaults, fuel containment structures, airport projects, grease pits and other high-risk applications. RAM-NEK® FR provides a permanently flexible, watertight seal in environments where gasoline, jet fuel, or other hydrocarbons are present.

    Features

          • Fuel and oil-resistant
          • Sealed joints will not shrink, harden, or oxidize
          • Does not require a designed control joint to function
          • Offers excellent chemical and mechanical adhesion

    Primers

    Packaging

          • 4 (1.5 in. x 10.5 ft.) coils per case (RN-67)6 (1 in. x 14.5 ft.) coils per case (RN-96)

    RAM-NEK

    Butyl-Nek BN109

    Butyl-Nek Joint Sealant BN109

    Designer Specifier Contractor
    LEED CAD Technical  Guide Spec Installation MSDS
    N/A N/A download
    EMAIL IT!
    N/A N/A download
    EMAIL IT!

    Butyl-Nek® Joint Sealant BN109Formulated with a special blend of butyl and asphalt, Butyl-Nek® Joint Sealant is a preformed plastic joint sealant for pipes, vaults and manholes. Meets or exceeds Federal Specification SS-S-210 (210-A), AASHTO M-198B and ASTM C-990-09.

    Features

          • Seals a wide range of precast products
          • Designed for vertical and horizontal applications
          • Extruded into convenient coil lengths

    Primers

    Packaging

          • 9 (.75 in. x 14.5 ft.) coils per case (BN-85)
          • 8 (1 in. x 14.5 ft.) coils per case (BN-84)
          • 5 (1.25 in. x 14.5 ft.) coils per case (BN-82)

    Butyl-Nek

    Rub’R-Nek RU106

    Rub’R-Nek LTM RU106

    Designer Specifier Contractor
    LEED CAD Technical  Guide Spec Installation MSDS
    N/A N/A download
    EMAIL IT!
    N/A N/A download
    EMAIL IT!

    Rub'R-Nek® LTM RU106Rub’R Nek® LTM is a flexible, gasket-type sealant for utility vaults, sewer manholes, wastewater structures, storm sewer pipe and culverts, and more. Formulated with 100% solids and partially vulcanized butyl rubber, Rub’R Nek LTM provides exceptional flexibility, shape retention, adhesion and cohesion.

    Features

          • Applies easily in temperatures as low as 30°F
          • Won’t shrink, harden, or oxidize
          • Retains compressibility through a range of deflections

    Primers

    Packaging

          • 12 (1/2 in. x 21.75 ft.) coils per case (RU-98)
          • 8 (.75 in. x 18 ft.) coils per case (RU-97)
          • 6 (1 in. x 14.5 ft.) coils per case (RU-96)
          • 4 (1.5 in. x 10 ft. x 11 in.) coils per case (RU-80)
          • 5 (1.25 in. x 14.5 ft.) coils per case (RU-95)
          • 4 (2 in. x 7.5 ft.) coils per case (RU-94)

    Rub'r-Nek

    Rub’R-Nek RU116

    Rub’R-Nek External Concrete Joint Wrap RU116

    Designer Specifier Contractor
    LEED CAD Technical  Guide Spec Installation MSDS
    N/A N/A download
    EMAIL IT!
    N/A N/A download
    EMAIL IT!

    Rub'R-Nek External Concrete Joint Wrap RU116Rub’R Nek® External Concrete Joint Wrap delivers a permanent, flexible watertight seal on external concrete joints. Manufactured with a unique process that blends, extrudes and bonds synthetic elastomers and resins into a high-strength plastic film, Rub’R Nek® External Concrete Joint Wrap self-heals against punctures and offers excellent mechanical strength, abrasion resistance and dimensional stability.

    Features

          • Easy, cold application by hand over a wide temperature range
          • Offers excellent mechanical properties and chemical resistance
          • Excellent chemical and mechanical bond adhesion to concrete surfaces
          • Will not shrink, harden or oxidize

    Primers

    Packaging

          • 4 (6 in. x 50 ft.) rolls per case (RU-93)
          • 4 (9 in. x 50 ft.) rolls per case (RU-92)
          • 4 (12 in. x 50 ft.) rolls per case (RU-91)

    Rub'r-Nek

    Division 4 – Masonry

    04 05 00 – Common Work Results for Masonry

    04 05 23 - Masonry Accessories- Control Joint, Weep Tubes & Block Caps

    Masonry Control Joint

    PVC & Rubber Masonry Control Joint

    Designer Specifier Contractor
    LEED CAD Technical  Guide Spec Installation MSDS
    download
    EMAIL IT!
    N/A download
    EMAIL IT!
    N/A N/A PVC
    download
    EMAIL IT!Rubber
    download
    EMAIL IT!

    BoMetals masonry control joints are available in both PVC and Rubber compounds. They are standard black in color in 4′ lengths. Special lengths are available on request.

    Masonry Control Joints

    Catalog # Material A B C D #lbs./LF
    BCJ-1 PVC 2 3/8″ 5/8″ 1 1/2″ 5/16″ .75
    BCJ-8  Rubber 2 3/8″ 5/8″ 1 1/2″ 5/16″ .52
    BCJ-2 PVC 2 3/8″ 5/8″ 1″ 5/16″ .60
    BCJ-9  Rubber 2 3/8″ 5/8″ 1″ 5/16″ .42
    BCJ-3 PVC 6 3/8″ 5/8″ 1 1/2″ 7/16″ 1.00
    BCJ-10  Rubber 6 3/8″ 5/8″ 1 1/2″ 7/16″ .69
    BCJ-4  PVC 10 3/8″ 5/8″ 1 1/2″ 7/16″ 1.35
    BCJ-11  Rubber 10 3/8″ 5/8″ 1 1/2″ 7/16″ .94

    Cracking in block walls normally results from restrained movement. This movement may originate within a building material due to temperature change or shrinkage, or may result from movement of adjacent building elements. In most cases, movement is inevitable and must be accounted for during design if cracking is to be controlled. BoMetals Control joints, when placed in concrete masonry walls, are an excellent method of crack control.

    Control joints are vertical separations built into a concrete masonry wall to reduce restraint and permit longitudinal movement. They are located where cracking is likely to occur due to excessive tensile stress.

    Control joints are typically located at

          • wall openings
          • changes in wall height or thickness
          • construction joints in foundations, roofs and floors
          • wall intersections
          • a distance of not over one-half the allowable joint spacing from all corners
          • a determined spacing for the length of the wall

    For walls without openings, control joints are used to effectively divide a wall into a series of isolated panels.

    Physical Properties

    Properties of PVC Control Joints Test Method of PVC Control Joints Nominal Value of PVC Control Joints
    Tensile Strength ASTM D-638 1500 PSI
    Elongation ASTM D-638 300%
    Specific Gravity ASTM D-792 1.40
    Hardiness Shore A ASTM D-2240 85 + /-5
    Properties of Rubber Control Joints Test Method of Rubber Control Joints Nominal Value of Rubber Control Joints
    Tensile Strength ASTM D-2000 750 PSI
    Elongation ASTM D-2000 300%
    Hardiness Shore A ASTM D-2000 70 + /-5

    Weep Tubes

    Weep Tubes & Vents

    Designer Specifier Contractor
    LEED CAD Technical  Guide Spec Installation MSDS
    download
    EMAIL IT!
    N/A download
    EMAIL IT!
    N/A N/A Call Office!

    PVC Weep Tubes

    Cat # Length Box Qty Pallet Qty
    2030 4″ 1000 ea 36,000 ea
    2035 4″ 500 ea 36,000 ea
    2037 4″ 250 ea 36,000 ea
    2085 8″ 500 ea 18,000 ea

    Preparation

    Weep TubesDuring progress of work all weep tubes shall be protected from damage and should be free of oil, dirt and concrete spatter. Weep Tubes should be kept free from internal obstructions. Broken or damaged weep tubes should not be used. All weep tubes shall be placed to insure that they are correctly positioned in the masonry joint to guarantee air movement from the cavity to the outside of the wall. Typical placement would be for the one end of the weep tube to be flush with the outside of the joint and the opposite end to project into the cavity of the wall. Typical locations would be no greater than 24″ on center. Care should be taken during mortar placement to prevent excessive movement of the weep tubes to insure against displacement. Always thoroughly and systematically inspect mortar around the weep tubes to make certain that the weep tube is free from obstruction.

    Placement

    Weep TubesThe location and embedment of the weep tubes shall be as shown on the drawings or called for in the specifications. BoMetals Weep Tubes are manufactured from clear rigid PVC.




    Block Cap


    Block Cap

    Designer Specifier Contractor
    LEED CAD Technical  Guide Spec Installation MSDS
    download
    EMAIL IT!
    N/A download
    EMAIL IT!
    N/A N/A download
    EMAIL IT!

    Block CapsTo help control costs, block caps are used to close off the cells that do not require the grout in a vertical reinforcing system.

    Block Caps are preformed metal inserts that sturdily lock between concrete block voids to stop grout infiltration into the vertical cells that do not use reinforcing.

    The grout must flow into some vertical cells to bond the blocks with the reinforcing members anchored in the foundation. Therefore, block caps and bond beams are typically used in wall systems that have a combination of vertical and horizontal reinforcement. This highly reinforced wall system is common where buildings must withstand high wind loads.

      Division 5 – Metals

      05 05 00 – Common Work Results for Metals

      05 05 23 - Metal Fastenings- Bearing Pads

      AASHTO Grade Neoprene Bearing Pad

      AASHTO Grade Neoprene Bearing Pad

      Designer Specifier Contractor
      LEED CAD Technical  Guide Spec Installation MSDS
      N/A N/A download
      EMAIL IT!
      N/A N/A Call Office!

      Solid Neoprene Rubber Bearing PadSolid Rubber Neoprene Bearing Pads are available in both Commercial Grade and AASHTO Grade.  Bearing Pads available in many different grades and densities to meet the many different specifications, please inquire about availability and pricing per your desired specification.

      Commerical Grade Neoprene Bearing Pad

      Commerical Grade Neoprene Bearing Pad

      Designer Specifier Contractor
      LEED CAD Technical  Guide Spec Installation MSDS
      N/A N/A download
      EMAIL IT!
      N/A N/A Call Office!

      Solid Neoprene Rubber Bearing PadSolid Rubber Neoprene Bearing Pads are available in both Commercial Grade and AASHTO Grade.  Bearing Pads available in many different grades and densities to meet the many different specifications, please inquire about availability and pricing per your desired specification.

      Division 7 – Thermal & Moisture Protection

      07 91 00 – Preformed Joint Seals

      07 91 16 - Joint Gaskets- Neoprene Sponge Rubber with or without PSA

      Neoprene Sponge Rubber

      Neoprene Sponge Rubber

      Designer Specifier Contractor
      LEED CAD Technical  Guide Spec Installation MSDS
      N/A N/A download
      EMAIL IT!
      N/A N/A Call Office!

      Neoprene Rubber (Sponge)

      Neoprene is available in roll or sheet form and in Multiple Densities / Grades / Types to meet a wide range of specifications.  Please inquire about your specific needs.

      Features

            • Neoprene helps prevent clogging of expansion joints with mortar and is the accepted material for brick and block expansion joint fillers.
            • Can be precut and shipped direct to your jobsite.
            • Available with or without PSA (Pressure Sensitive Adhesive)
            • Many different grades available.


      07 91 23 - Backer Rod- Standard, Soft, Hot & Open Celled


      Backer Rod

      Backer Rod

      Designer Specifier Contractor
      LEED CAD Technical  Guide Spec Installation MSDS
      N/A N/A Standard
      download
      EMAIL IT!Soft
      download
      EMAIL IT!

      Hot
      download
      EMAIL IT!

      Open Celled
      download
      EMAIL IT!

      N/A N/A Call Office!

      Standard Backer RodStandard Backer Rod is an ideal non absorbent compressible material inserted into a joint to control sealant depth. It creates a backstop to allow for proper sealant tooling. Available in Soft, Hot, & Open Celled Type Backer Rod.

      Uses

            • Backer Rod is commonly used in glazing operations, window and door applications, expansion joints, curtain wall joints, partitions, log construction, pavement joints and repair, precast units and copings and any number of other job applications.

      Features

            • Standard Backer Rod is an extruded round, closed cell, low density polyethylene foam material with a skin-like outer texture. It is highly flexible and compressible for easy installation. (Do Not puncture, Stretch or Overly Compress)

      07 91 26 - Joint Filler- Non-Cross Linked & Cross Linked Foam

      Non Cross Linked Foam

      Non Cross Linked Foam

      Designer Specifier Contractor
      LEED CAD Technical  Guide Spec Installation MSDS
      N/A N/A download
      EMAIL IT!
      N/A N/A Call Office!

      Non-Crossed Linked Foam

      Available in Black, Grey or White, and can be used in all standard concrete construction applications.  It is widely used and accepted in residential, commercial and industrial construction.

      Features

            • Extruded from high quality polyethylene foam
            • Peel off Strip – Standard on each roll, but can be special ordered without
            • Flexibility – Will not break or crack when used around curves or columns
            • Lightweight – Approximately 10 times lighter than traditional expansion joint products
            • Accepted and used daily by both commercial and residential contractors
            • With near zero water absorption, it will not rot out of the joint over time
            • Easily cut and handled on any job site

      Installation

            • Your setup is all the same, no special equipment is required.
            • Simply install Non-Cross Linked Foam with the peel strip either up or down, depending on if the joint will be sealed or not.
            • Install using spray on adhesive, mechanical fastners, or depending on the surface simply smack it with a hammer.
            • Finish the concrete as you normally would
            • If the joint will not be sealed then you’re done, if it will be sealed, utilize the peel top feature to create the sealant cavity.

      Cross Linked Foam

      Cross Linked Foam

      Designer Specifier Contractor
      LEED CAD Technical  Guide Spec Installation MSDS
      N/A N/A download
      EMAIL IT!
      N/A N/A Call Office

      Cross Linked Foam

      Available in Black, Grey or Cream rolls or Grey sheets.  Cross-linked PE Foam can be used in all standard concrete construction applications.  It is widely used and accepted in residential, commercial, industrial and State DOT construction.

      Features

            • HT (Chemically) or HTI (Irradiation) Crosslinked Types
            • Extruded as high quality closed cell, cross linked polyethylene foam
            • Peel off Strip – Can be added to certain thicknesses, please inquire
            • Flexibility – Will not break or crack when used around curves or columns
            • Accepted and used daily by both commercial/DOT and residential contractors
            • Can be State DOT approved, Conforms to ASTM D-4819 Type 1, please inquire
            • Available with or without PSA (Pressure Sensitive Adhesive)
            • Easily cut and handled on any jobsite

      Reliable

      HT or HTI provide all the same reliable characteristics as our standard Non Cross Linked Foam but is compatible with hot applied sealants and exposure to a broader range of solvents.
